Application:

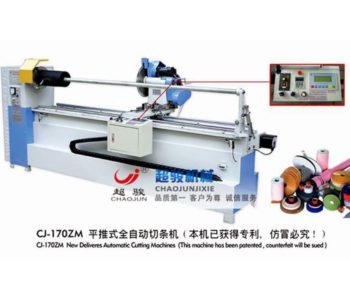

New deliveries cutting machines , straight strap and 45-degree diagonal cloth rolling machine suitable for cloth ,adhesive-bonded fabric , tent, umbrella ,sponge foam, leather , reflective material , plastic , paper , two-slide glue , acetate fabric , reinforced belt ,conductive cloth, copper , foil and other materials of various width straight .The idea choice of industries of clothing , bags , footwear , hats , garment subsidiary material , reflective material factory ,tent factory , umbrella factory ,transformer factory , elector factory and other industries.
Technical parameters:
Width:1.7m(2.05m,2.4m optional)
Rotating Speed of Cloth Roll: 0-800 rpm/min
Cloth Diameter: 300 mm, 400 mm、500 mm can also be customized
Diameter of Cloth Roll:37mm
Power:0.75kw
Blade power:1.5kw Minimun
Width of Cut Strap:2mm
Voltage:380V/220V optional Machine
Measurement:2.7m×0.75m×1.4m
Feature:
1、Circular knife spindle, and use the CVT system, do the level of variable speed and reversing switch.
2、Imported PLC and control system, imported high-precision cutting width and step retreat knife cutting systems, precision ball screw and imported with the shift rail, high-life, easy to wear, so that the width of the cutting Accuracy of 0.1mm, the narrowest cutting width of 2mm, cutting parallel to the fast feed advance speed with stepless speed, paper tube is easy to cut, to quickly cut out high-quality precision products.
3、The user interface with LCD Chinese display, all operations, only one screen, which can set four kinds of cutting width and frequency, and show the actual cutting times, and with manual / automatic conversion
4、With double-sided sharpening system that uses diamond grinding wheel, durable, easy to heat, high finish after grinding blades, grinding wheels of life ten times the ordinary Baiyu Gang, without disassembling The blades, you can knife. Long-term sharp blade, to achieve the best cutting quality, along with automatic cleaning devices to keep track of cloth and clean.
5、Using fast discharge design, in one step. Cutting only on the material to complete an action.
6、Each individual circuit control system, each line has done a label, diagnostic maintenance quick and easy, not easy to fail.
7、Buka folder with security cover plate, not hurt.
8、Chain with a plastic wire protection, cable is not easily broken, is not easy to short time using .
