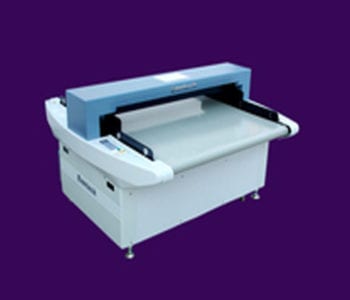

WIDE NEEDLE DETECTOR FOR BEDDING
Product Features:
Designed according to the characters of the bedding production,use latest sensor detection principle,with the feature of wide detection channel,high precision,anti-shake and antimagnetic, can effectively distinguish between the detection signal and interference signal.
1.Wide detecting channel,widely used on broad objects.
2.The amount of qualified products ,unqualified products and the total amount of products can be calculated respectively.
3.Applicable for thick or super-thin objects separately.
4.Automatically adjust deviation of the belt ,the belt will not be deflected;
5.Equipped with computerized start-and-stop device.
6.With the design of environment protection concept,auto electricity saving.
7.With environment monitor and location indicator for broken needles and farrous fragment
8.Auto-alarm when broken needle or ferrous fragment is detected.Auto-return function,the return distance can be adjusted for big or small objects at will;
9.Anti-interference and high stability, high reliability and high sensitivity.
Technical paramenters:
Detecting Mode: Magnetic linduction
Detecting Ability: Φ1.20mm Ferrous Fragment
Detecting Adjustment: Step-less Adjustment
Detecting Width: 1200mm(Standard Type)-2000mm
Detecting Height: 150mm
Alarm Mode: Beep
Belt Speed: (approx.)30m/min
Power Supply: Single-phase 220V,50HZ
Rated Output: (approx.)165W
Dimension: 1650(L)x1650(W)x1050(H)mm(HD-1200CE)
Weight: (approx)360kg(HD-1200CE)
