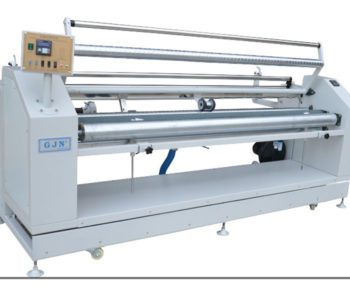

JN-225S-ED Straight and Bias Fabric Rolling Machine with Edge Device
1. The twill coiling can be adjusted between 30º to 70º.
2. The coiling speed can carry out stepless speed governing, can coiling freedom. It is convenient to release fabric.
3. The measuring meter is imported which can ensure accurate measurement of cloth.
4. The fabric pressing axis equipped with pneumatic up-and-down function, making the operation convenient.
5. The edge device function can make the coiling more perfect and minimize the consumption of materials(only JN-225S-ED have this function).
6. The fabric’s degree of tightness can be adjusted at will.
Maximum coiling width: 210cm(84″)
Coiling diameter: ≤φ40cm
Coiling motor power: 0.55kw
Cutter motor power: 0.33kw
Input voltage: 220V, 50Hz
Coiling speed: 0-40m/min
Need to use with compressor: 0.5Mpa-0.8Mpa
Machine size: 265*195*130(cm)
Packing size: 278*108*130(cm)
Net weight: 460kg
Gross weight: 650kg
