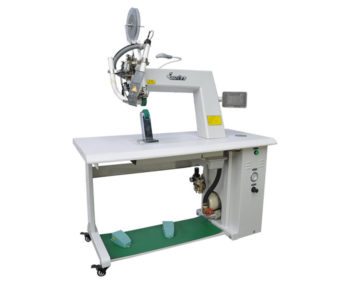

V-2 +. MÁY ÉP SEAM TỰ ĐỘNG ( thích hợp dùng cho quần áo, đồ lặn, trượt tuyết,..)
Features:
1. The use of PLC programmable, touch-digital display operation, according to user needs at any time to modify the program.
2. Temperature automatic control, high stability, temperature fluctuations + -2C, the temperature limit alarm design, protection of heating wire.
3. Up and down pressure transmission chain synchronous transmission, automatic compensation for virtual, automatic micro-retreat function to reduce the pressure with a blank.
4. According to the human body mechanics design double foot control procedure, the operation comfortable, is not easy fatigue, is suitable for the long time work.
5. Can work continuously for 24 hours, high efficiency production.
6. Unique heating tube structure, into the wind by the filter, no water and oil.
7. The next column of the unique ultra-thin design, suitable for all kinds of Dazhong Xiao pieces of product sealing pressure belt.
8. Automatic cutting belt, with the belt, automatic tail to complete, reduce material loss.
Specifications:
Model : V-2+
Voltage : AC 220V 50/60HZ
Rating efficiency : 2800 W
Air sypply : 0.35 ~0.5 Mpa
Heat control : room temperature ~7000C adjustable without bands
Heat sealing speed : 1-18m/min
Width of pinch roller : standard : 25mm mill finish, stell grain to be chosen according to demand
Width of seam sealing tape : 14mm-22mm standard, others are available according to requirements
Rubber wheel specification : 65mmx25mm
Exterior size : 1300mm(L)x600mm(W)x1530mm(H)
Net Weight : 140KG
Prevention against jumping over sewing work : There are adjustable devices to prevent the gun from jumping over th seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping.
